ML chocolate bean machine
ML chocolate bean machine
Detail

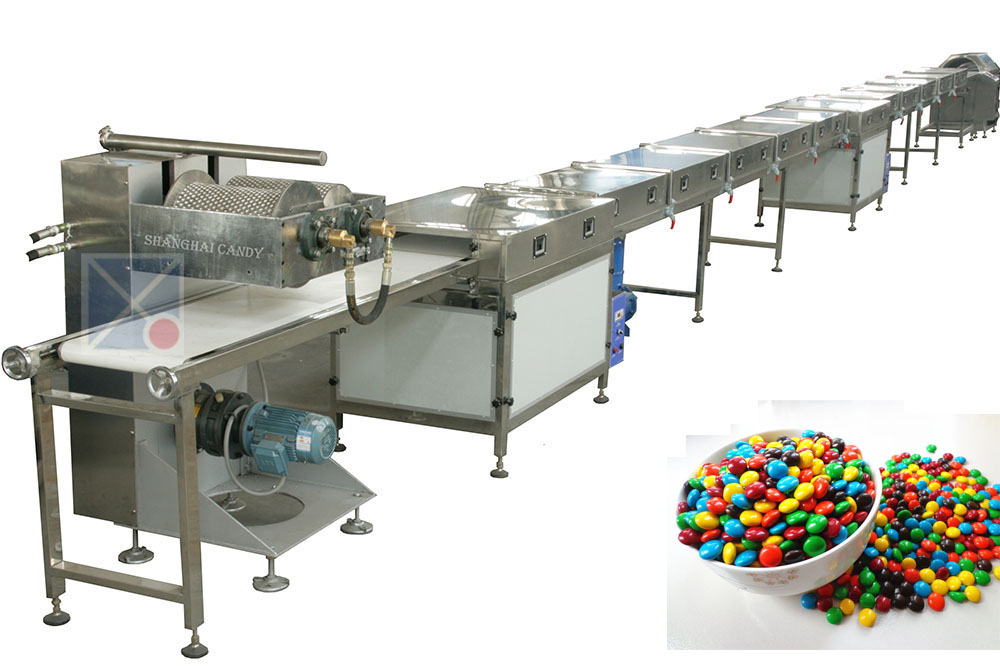

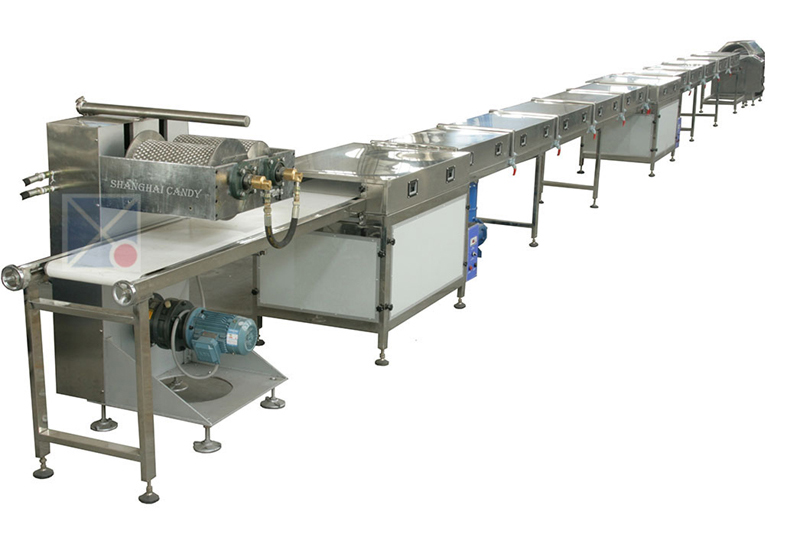

ML400/800 chocolate bean machine

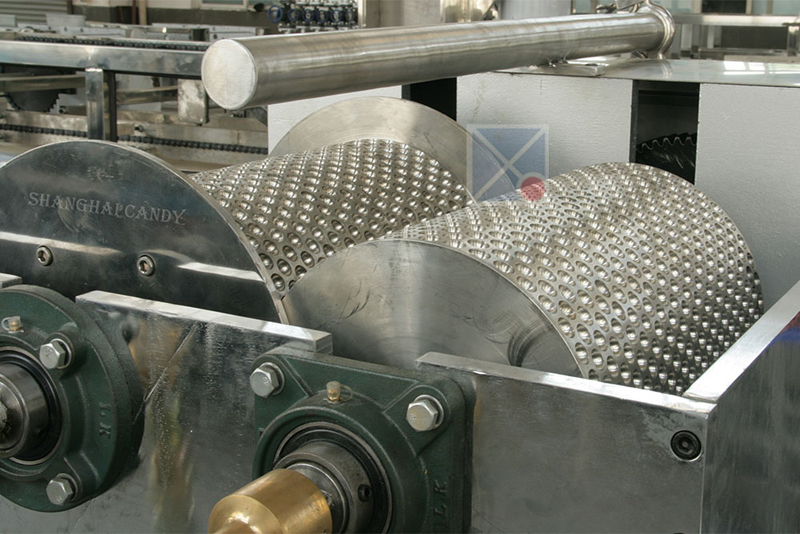

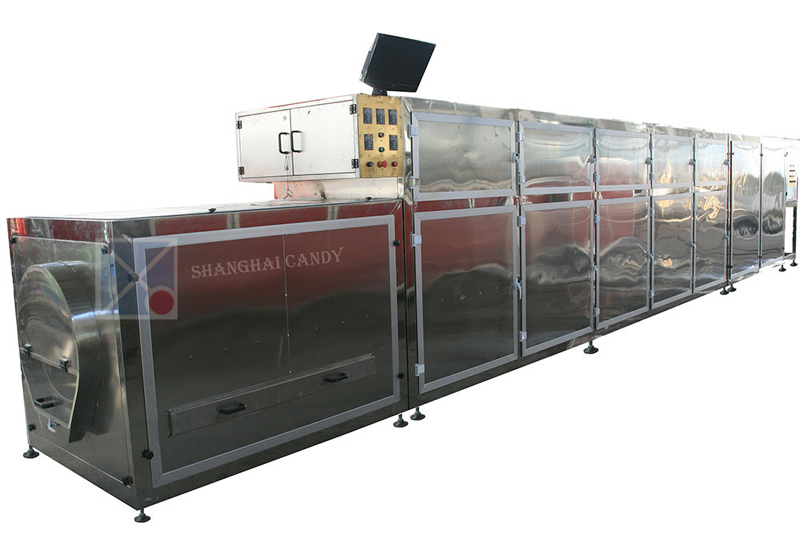

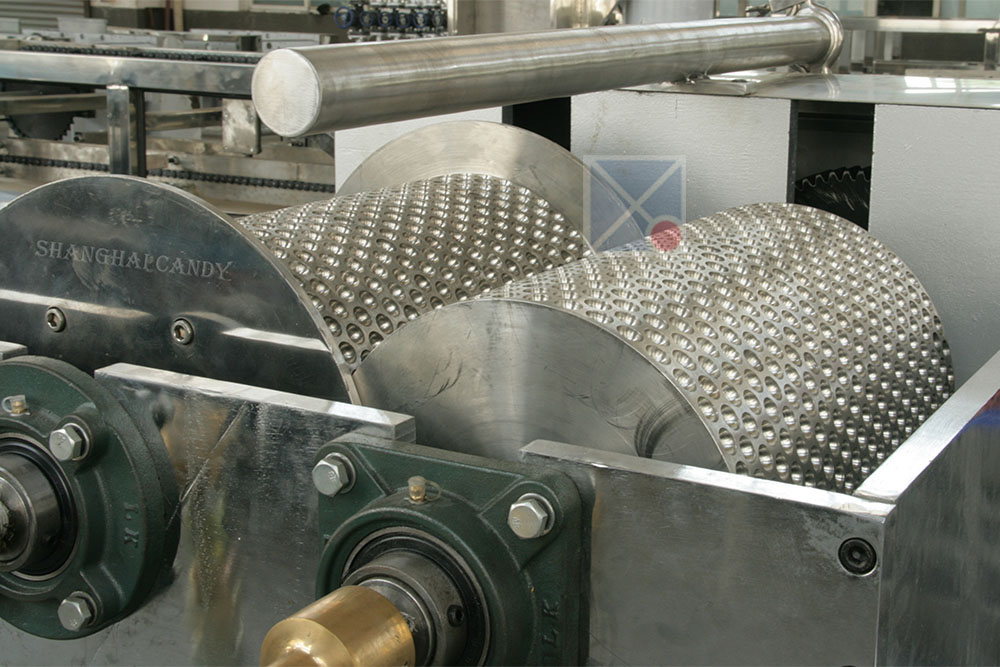

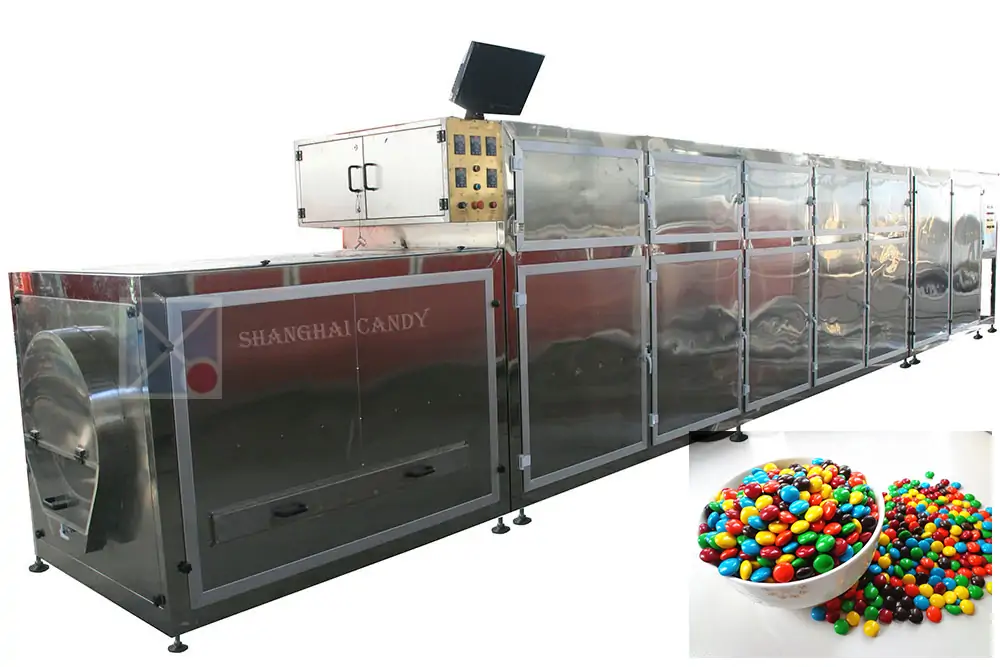

This machine mainly consists of chocolate holding tank, double roller forming machine, cooling tunnel and polishing machine. It can produce chocolate bean in different colors.
ML800 is full closed design, avoid operators touching the material, meet the food production sanitary standard.
Main feature:
1. Cooling press forming type, can produce ball shape, oval shape, oblate shape chocolate beans etc.
2. Low energy consumption, high capacity, products have good taste.
3. Easy operation and high automation.
Machine specification:
Model | ML400 | ML800 |
Capacity | 100-150kg/h | 400-600kg/h |
Forming temp. | -30-28โ | -30-28โ |
Cooling tunnel temp. | 5-8โ | 5-8โ |
Forming machine power | 1.5Kw | 6Kw |
Machine size | 17800*400*1500mm | 10800*2000*2700mm |
