Solutions
Based on intelligent production lines
Ingenuity builds production lines, intelligence creates sweet fun; precision craftsmanship empowers, flavors embrace the world.
hard candy depositing machine
hard candy depositing machine
Detail

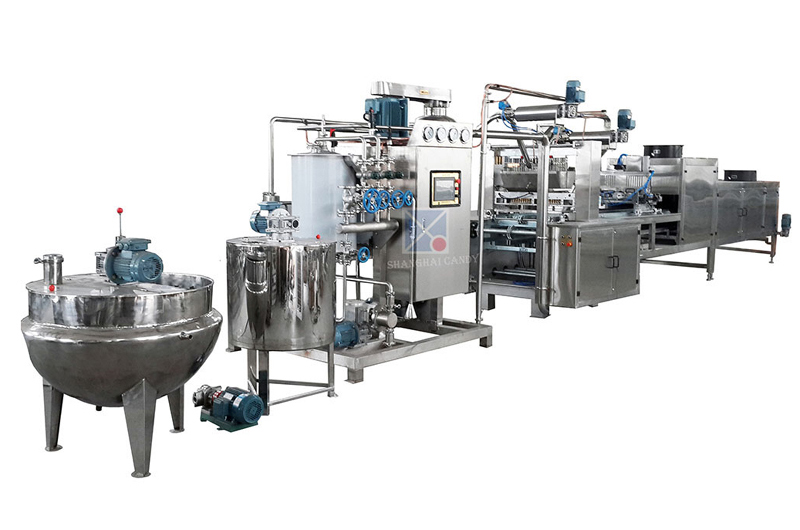

SGD150/300/450/600 Automatic Hard Candy Depositing Machine
SGD150/300/450/600 servo driven PLC controlled automatic hard candy depositing machine is the most advanced production line for deposited hard candy and lollipop manufacturing. This line mainly consists of auto weighing and mixing system (optional), pressure dissolving system, micro-film cooker, depositor and cooling tunnel and adopt the advanced servo system to control the processing. Besides, this line also has following characteristics:
1. Sugar and all other materials are automatic weighed, transferred and mixed through adjust touch screen. Various kinds of recipes can be programmed in the PLC and applied easily and freely when required.
2. PLC, touch screen and servo driven system are imported brand, more reliable and stable performance and durable use-life.
3. Depositing volume (candy weight) can be changed easily through setting data on touch screen. More accurate depositing and continuous production makes minimal product wastage.
4. Simple and compact machine structure, menu style operation interface, convenient operation and
maintenance, high efficiency, low-noise, stable performance and long life.
5. Ball and flat lollipop stick-insert machine for producing lollipop in the same line is optional.
Technical Specifications:
Model No. | SGD150 | SGD300 | SGD450 | SGD600 |
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
Candy Weight | as per the candy size | |||
Depositing Speed | 50 ๏ฝ60n/min | 50 ๏ฝ60n/min | 50 ๏ฝ60n/min | 50 ๏ฝ60n/min |
Steam Requirement | 250kg/h, 0.5๏ฝ0.8Mpa | 300kg/h, 0.5๏ฝ0.8Mpa | 400kg/h, 0.5๏ฝ0.8Mpa | 500kg/h, 0.5๏ฝ0.8Mpa |
Compressed air requirement | 0.2mยณ/min, 0.4๏ฝ0.6Mpa | 0.2mยณ/min, 0.4๏ฝ0.6Mpa | 0.25mยณ/min, 0.4๏ฝ0.6Mpa | 0.3mยณ/min, 0.4๏ฝ0.6Mpa |
Working Condition | Temperature๏ผ20๏ฝ25โ๏ผ Humidity๏ผ55% | Temperature๏ผ20๏ฝ25โ๏ผ Humidity๏ผ55% | Temperature๏ผ20๏ฝ25โ๏ผ Humidity๏ผ55% | Temperature๏ผ20๏ฝ25โ๏ผ Humidity๏ผ55% |
Total power | 18Kw/380V | 27Kw/380V | 34Kw/380V | 38Kw/380V |
Total Length | 14m | 14m | 14m | 14m |
Gross Weight | 3500kg | 4000kg | 4500kg | 5000kg |
