QJZ chocolate moulding machine
QJZ chocolate moulding machine
Detail

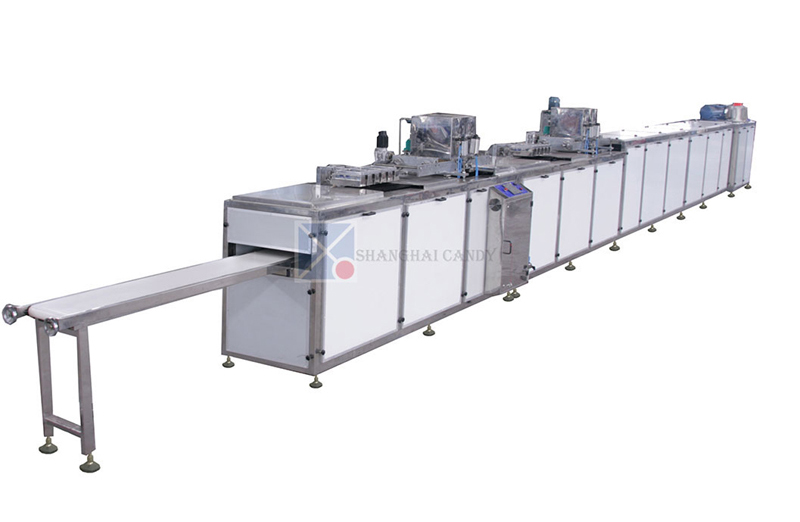

QJZ300/470 Chocolate Moulding Machine
This machine services as advanced chocolate pour-forming equipment that integrates mechanical control and electric control all in one. Full automatic work program is applied throughout the flow of production, including mould drying, filling, vibration, cooling, demoulding and conveyance. This machine can produce pure chocolate, chocolate with filling, two-color chocolate and chocolate with granule mixed. The products enjoy attractive appearance and smooth surface.
Machine specification:
Model | QJZ-300 | QJZ-470 |
Capacity | 0.8~2.5 T/8h | 1.2~3.0 T/8h |
Power | 30 kw | 40 kw |
Refrigerating Capacity | 35000 Kcal/h | 35000 Kcal/h |
Gross Weight | 6500 kg | 7000 kg |
Overall Dimension | 16300*1100* 1850 mm | 16685*970* 1850 mm |
Size of Mould | 300*225* 30 mm | 470*200* 30 mm |
Qty of Mould | 240pcs | 270pcs |
