QM chocolate moulding machine
QM chocolate moulding machine
Detail

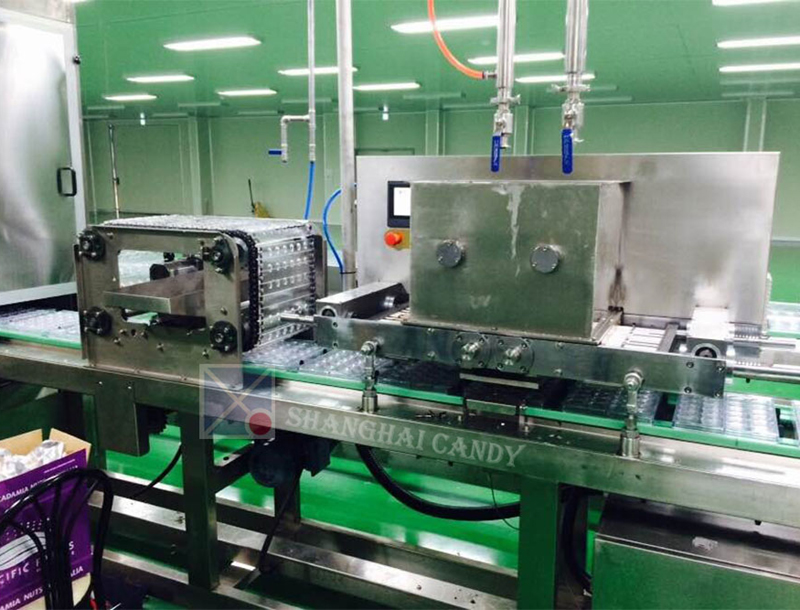

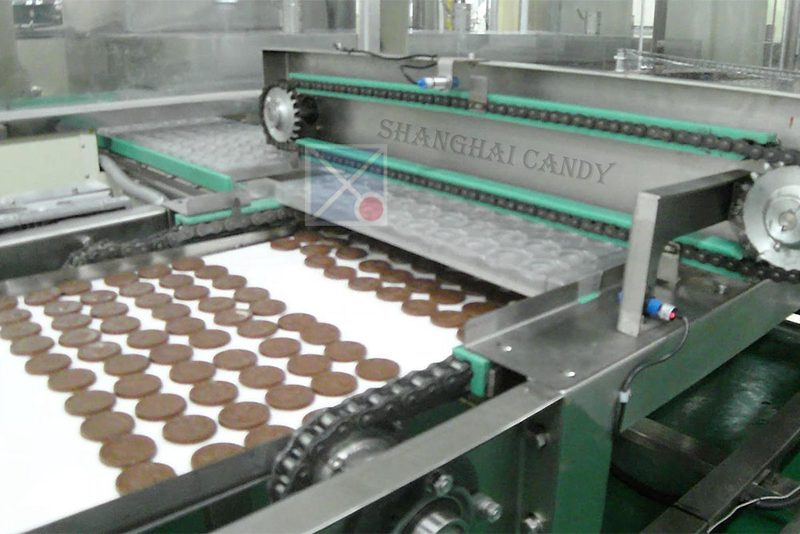

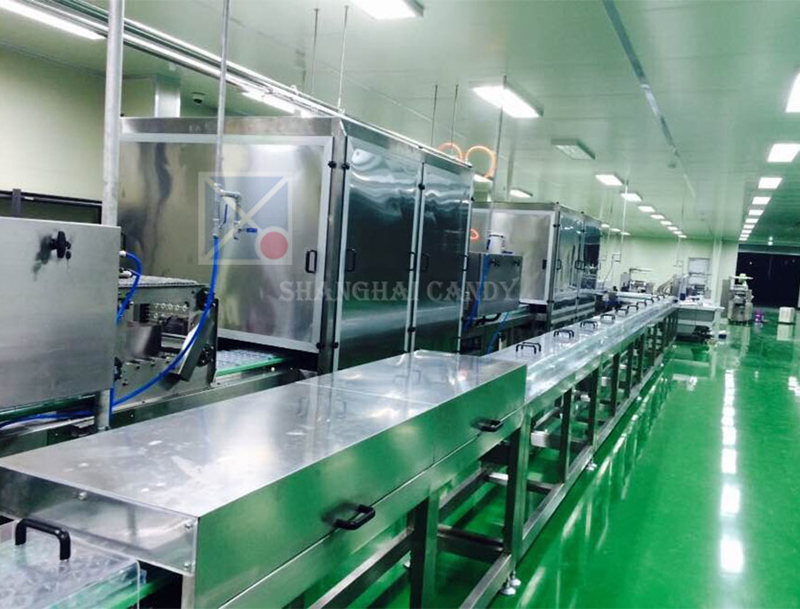

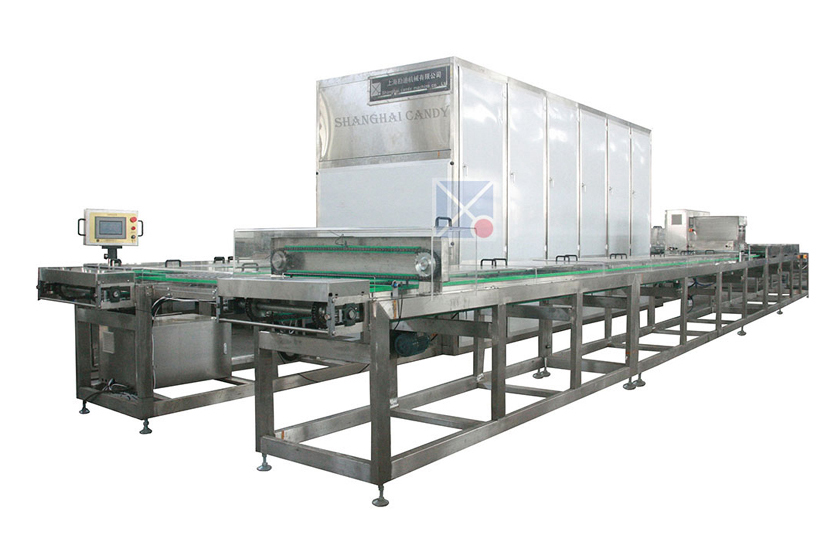

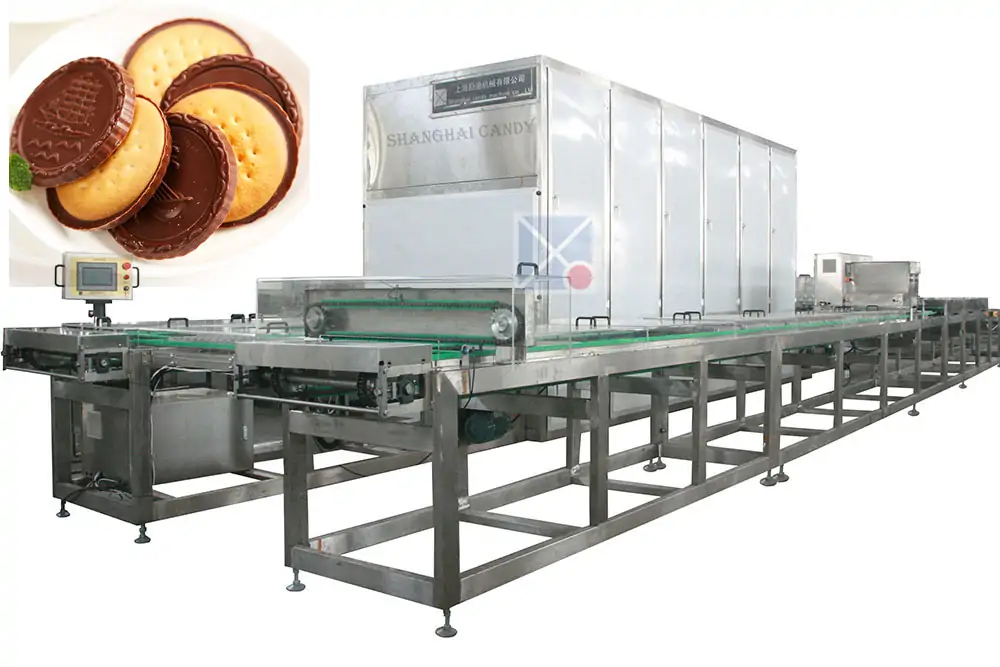

QM300/620 Chocolate Moulding machine
This machine is our newly developed and advanced chocolate pour-forming equipment, integrates mechanical control and electric control all in one. Full automatic working program is applied throughout the flow of production by PLC control system, including mould drying, filling, vibration, cooling, demould and conveyance. Nuts spreader is optional to produce nuts mixed chocolate. This machine has the advantage of high capacity, high efficiency, high demoulding rate, able to produce various kinds of chocolate etc. This machine can produce pure chocolate, chocolate with filling, two-color chocolate and chocolate with nuts mixed. The products enjoy attractive appearance and smooth surface. Machine can accurately fill the required quantity.
Machine specification:
Model | QM300 | QM620 |
Capacity | 200~300kg/h | 500~800kg/h |
filling speed | 14-24 n/min | 14-24 n/min |
Power | 34kw | 85kw |
Gross Weight | 6500kg | 8000kg |
Overall Dimension | 16000*1500*3000 mm | 16200*1650*3500 mm |
Size of Mold | 300*225*30 mm | 620*345*30 mm |
Qty of Mold | 320pcs | 400pcs |
