Lollipop depositing machine
Lollipop depositing machine
Detail

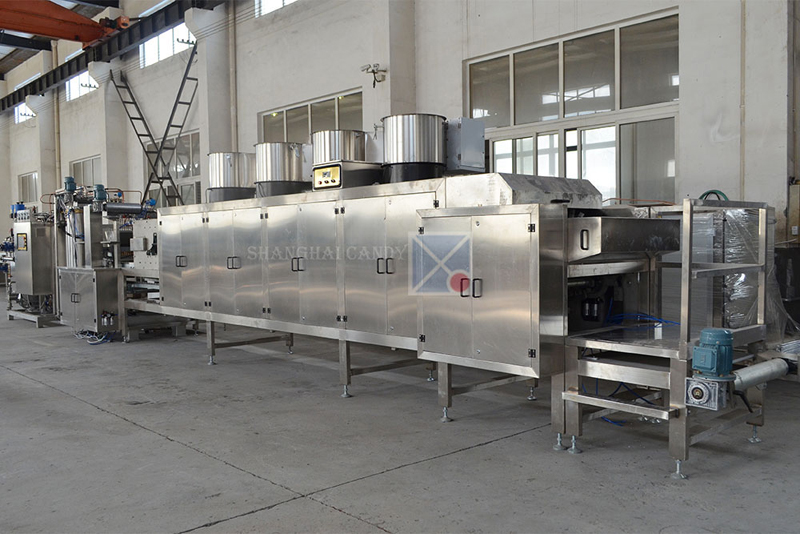

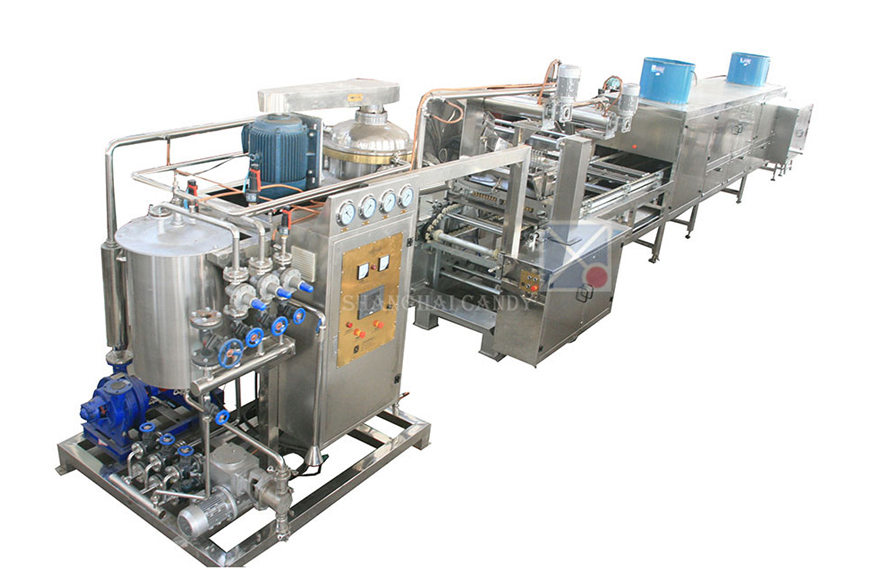

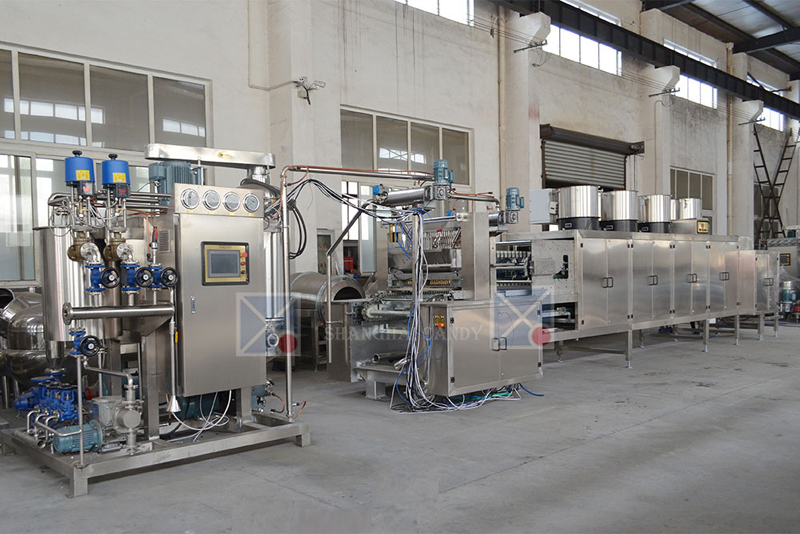

SGD500B lollipop depositing machine
SGD500B full automatic servo driven PLC controlled continuous depositing line is the most advanced and specially designed depositing machine for lollipop production. It mainly consists of auto weighing and mixing system(optional), pressure dissolving tank, micro film cooker, depositor, stick insert system, demoulding system and cooling tunnel. This line has the advantage of high capacity, accurate filling, accurate stick insert position. Lollipop produced by this line has attractive appearance, good taste.
Technical Specifications:
Model | SGD500B |
Capacity | 450-500kg/h |
Candy Weight | As per customer requirement |
Depositing Speed | 30๏ฝ35n/min |
Steam Requirement | 400kg/h, 0.5๏ฝ0.8Mpa |
Compressed air requirement | 0.25mยณ/min, 0.4๏ฝ0.6Mpa |
Working Condition | Temperature๏ผ20๏ฝ25โ๏ผ Humidity๏ผ55% |
Total power | 45Kw/380V |
Total Length | 16m |
Gross Weight | 4500kg |
