Jelly gummy candy depositing machine
Jelly gummy candy depositing machine
Detail

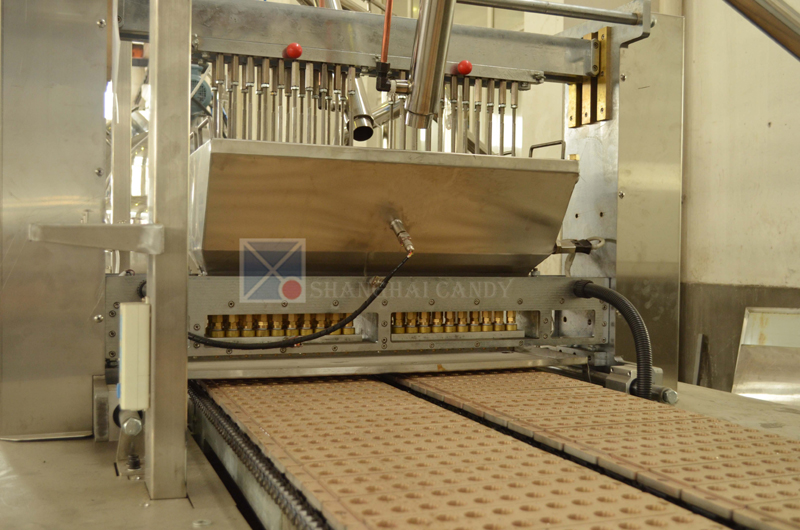

SGDQ150/300/450/600 Jelly Gummy Candy Depositing Machine

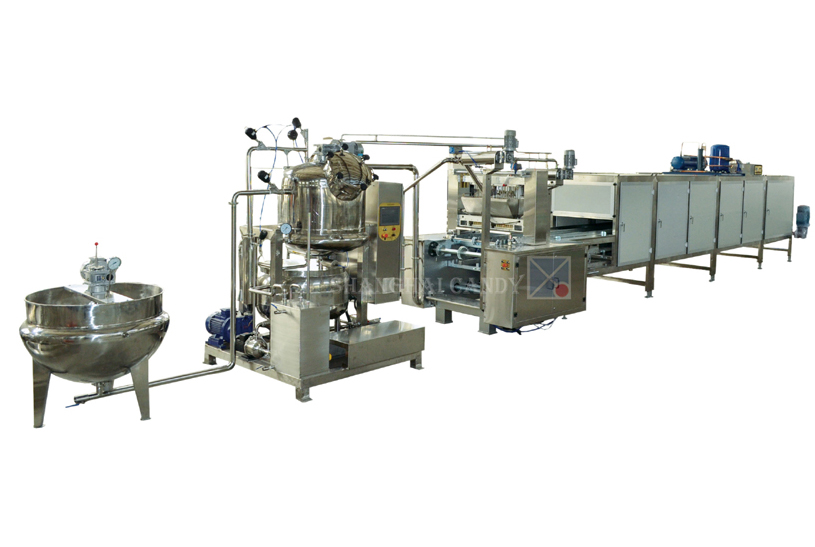

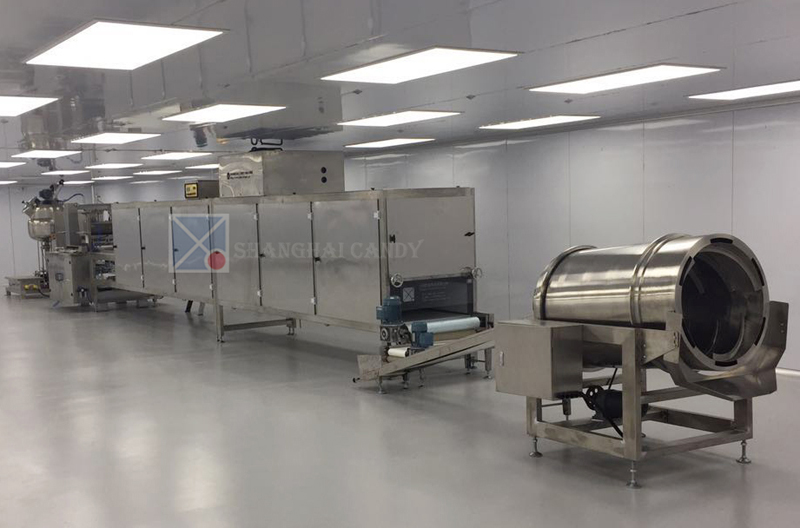

Jelly gummy candy depositing line is an advanced and continuous plant which is independent researched by our company for making high quality jelly candies by replacing moulds and filling plates. The whole line consists of jacketed dissolving tank, jelly mass mixing and storage system, depositing machine, cooling tunnel, conveyor, sugar coating machine (optional). It is applicable for all kinds of jelly-based material, such as gelatin, pectin, carrageenan, acacia gum etc. Automated production not only save time, labor and space, but also reduce the production cost. Electrical heating system is optional.
Deposited jelly candy processing flowchart:
Gelatin meltingโSugar & glucose boilingโAdd melt gelatin to the syrup mass โStorageโAdd flavor, color and citric acidโDepositingโCoolingโDemouldingโConveyingโdryingโpackingโFinal product
Technical Specifications:
Model | SGDQ150 | SGDQ300 | SGDQ450 | SGDQ600 |
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
Candy Weight | as per the candy size | |||
Depositing Speed | 45 ๏ฝ55n/min | 45 ๏ฝ55n/min | 45 ๏ฝ55n/min | 45 ๏ฝ55n/min |
Working Condition | Temperature๏ผ20๏ฝ25โ๏ผ Humidity๏ผ55% | |||
Total power | 35Kw/380V | 40Kw/380V | 45Kw/380V | 50Kw/380V |
Total Length | 18m | 18m | 18m | 18m |
Gross Weight | 3000kg | 4500kg | 5000kg | 6000kg |
