Full automatic cereal bar production line
Full automatic cereal bar production line
Introduction:
This cereal bar machine is a multi functional compound bar production line, used for production of all kinds of candy bar by automatic shaping. It mainly consists of cooking unit, compound roller, nuts sprinkler, leveling cylinder, cooling tunnel, cutting machine etc. It has the advantage of full automatic continuously working, high capacity, advanced technology. Coordinated with chocolate coating machine, it can produce all kinds of chocolate compound candies. Using with our continuous mixing machine and coconut bar stamping machine, this line can be also used to produce chocolate coating coconut bar. The candy bar produced by this line has attractive appearance and good taste.

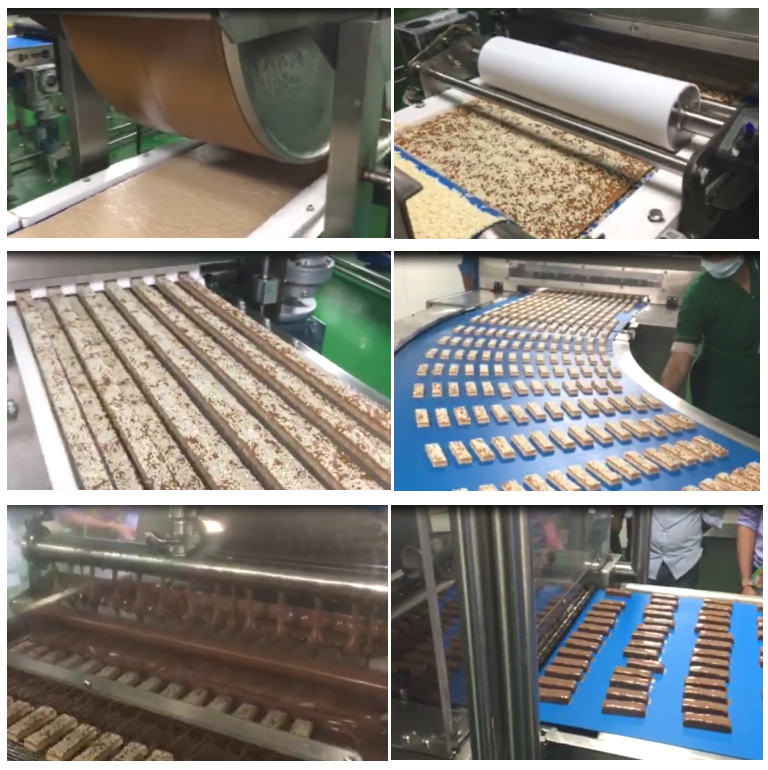

Machine Photo:
Application:
Production of peanuts candy, nougat candy, snickers bar, cereal bar, coconut bar etc.
Machine specification:
Model | COB600 |
Capacity | 400-800kg/h (800kg/h max) |
Speed of cutting | 0-30 Times/min |
Weight of product | 10-60g |
Steam consumption | 400Kg/h |
Steam pressure | 0.6Mpa |
Power voltage | 380V |
Total power | 96KW |
Compressed air consumption | 0.9 M3๏ผmin |
Compressed air pressure | 0.4- 0.6 ๏ผญpa |
Water consumption | 0.5M3/ h |
Candy size | can be made according to customerโs requirement |
