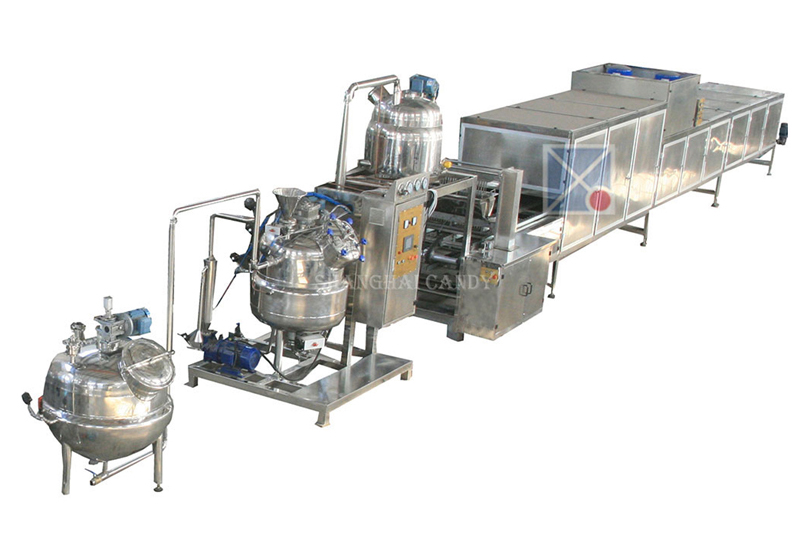

Full automatic toffee candy depositing line
Full automatic toffee candy depositing line
Introduction:
Toffee depositing line is the most advanced equipment for continuous making toffee caramel candy. It gathered machinery and electric all in one, using the silicone moulds automatically depositing and with tracking transmission demoulding system. It can make pure toffee and center filled toffee. This line consists of jacketed dissolving cooker, transfer pump, pre-heating tank, special toffee cooker, depositor, cooling tunnel, etc.
Deposited toffee candy processing flowchart :
Raw material dissolvingโTransportingโPre-heatingโToffee cookingโAdd oil and flavorโStorageโDepositingโCoolingโDe-mouldingโConveyingโPackingโFinal product
Application:
Technical Specifications:
Model | SGDT150 | SGDT300 | SGDT450 | SGDT600 |
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
Candy Weight | As per candy size | |||
Depositing Speed | 45 ๏ฝ55n/min | 45 ๏ฝ55n/min | 45 ๏ฝ55n/min | 45 ๏ฝ55n/min |
Working Condition | Temperature: 20๏ฝ25โ๏ผHumidity: 55% | |||
Total power | 18Kw/380V | 27Kw/380V | 34Kw/380V | 38Kw/380V |
Total Length | 20m | 20m | 20m | 20m |
Gross Weight | 3500kg | 4500kg | 5500kg | 6500kg |
